BMS in the Frýdek-Místek hospital - RSI SOFT

Hardware:	1x PC
Control stations:	Siemens, Schneider Electric
Date of commission:	2015-2024
Application designer/company name:	RSI SOFT s.r.o. http://www.rsi-soft.cz

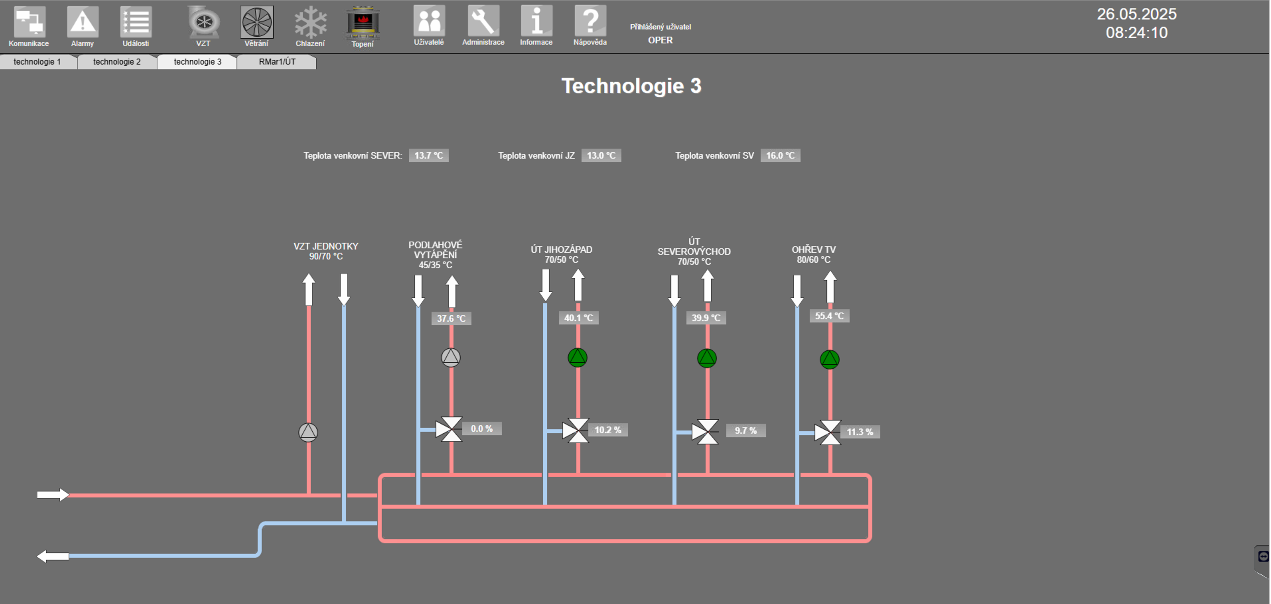

A comprehensive management system (BMS) is implemented in the buildings of the Frýdek-Místek Hospital. In the core of which is the PROMOTIC SCADA system. This system provides efficient monitoring and control of heating-related technologies and heat exchanger stations in individual hospital buildings. Main functions of the system: Monitoring and control of the heating system PROMOTIC provides supervision over the operation of heating systems in individual hospital buildings, including monitoring of current temperatures, pressures and flows in the system. The operators have access to real-time data and historical trends, allowing energy consumption to be optimised. Control heat exchanger stations The heat exchanger stations are controlled based on the actual heat demand, outdoor temperature and preset temperature curves. Here PROMOTIC provides control of heating water flow, control of pumps and valves, monitoring of operating conditions and fault signalling. Visualization and remote supervision The user-defined interface of the PROMOTIC system allows visualization of all controlled technologies in a clear graphical display. The system can be monitored and controlled remotely via a secure connection, e.g. from the control room or mobile devices of the responsible technicians. Alarm system and notifications In the event of a failure or operational emergency the system generates a report and sends a notification to the operator (e.g. by e-mail or SMS). Alarm history is archived for analysis and optimization of operation. Energy management and reports The PROMOTIC system collects and stores data on heat consumption, operating times of the equipment and other parameters important for energy management. The data is used for creating regular operational reports and evaluating efficiency of the system.
